2018 Klieverik GTC101-3500

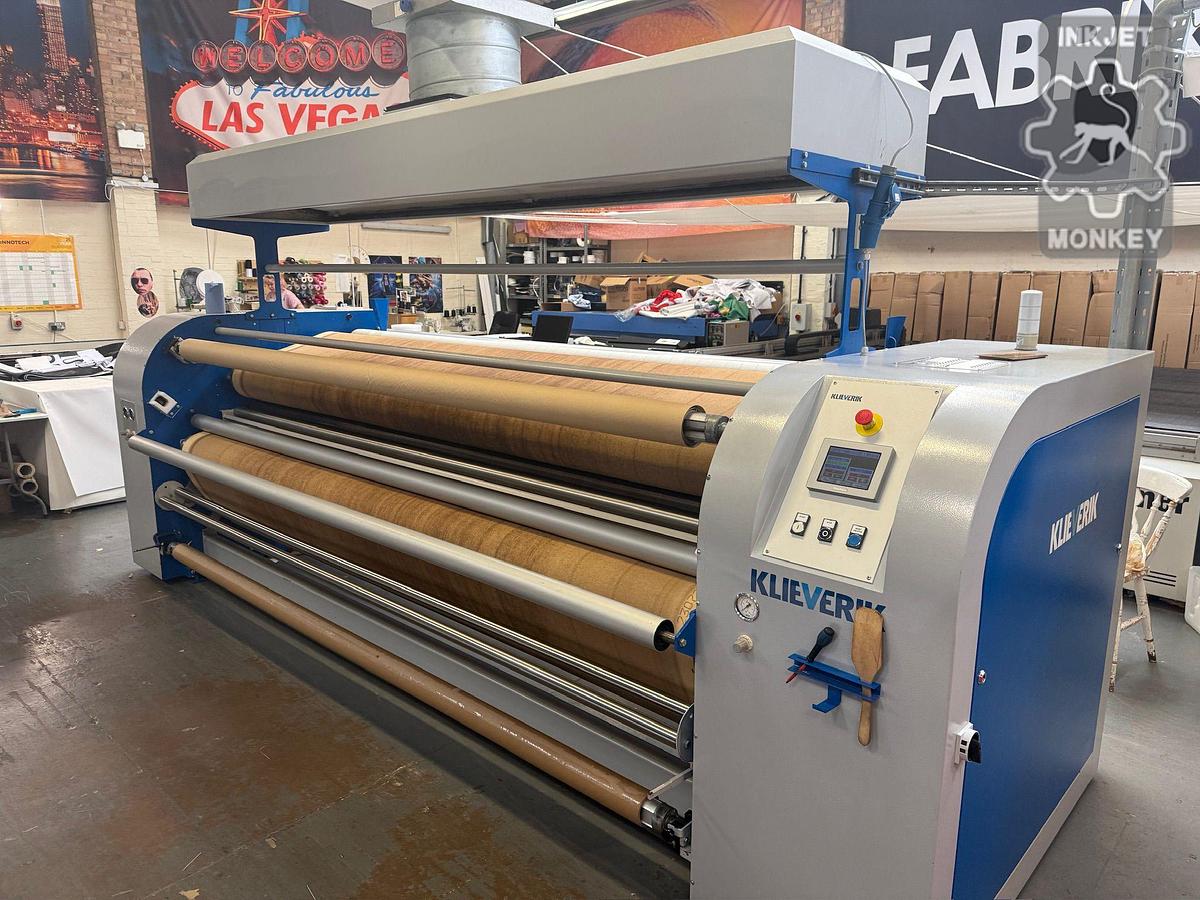

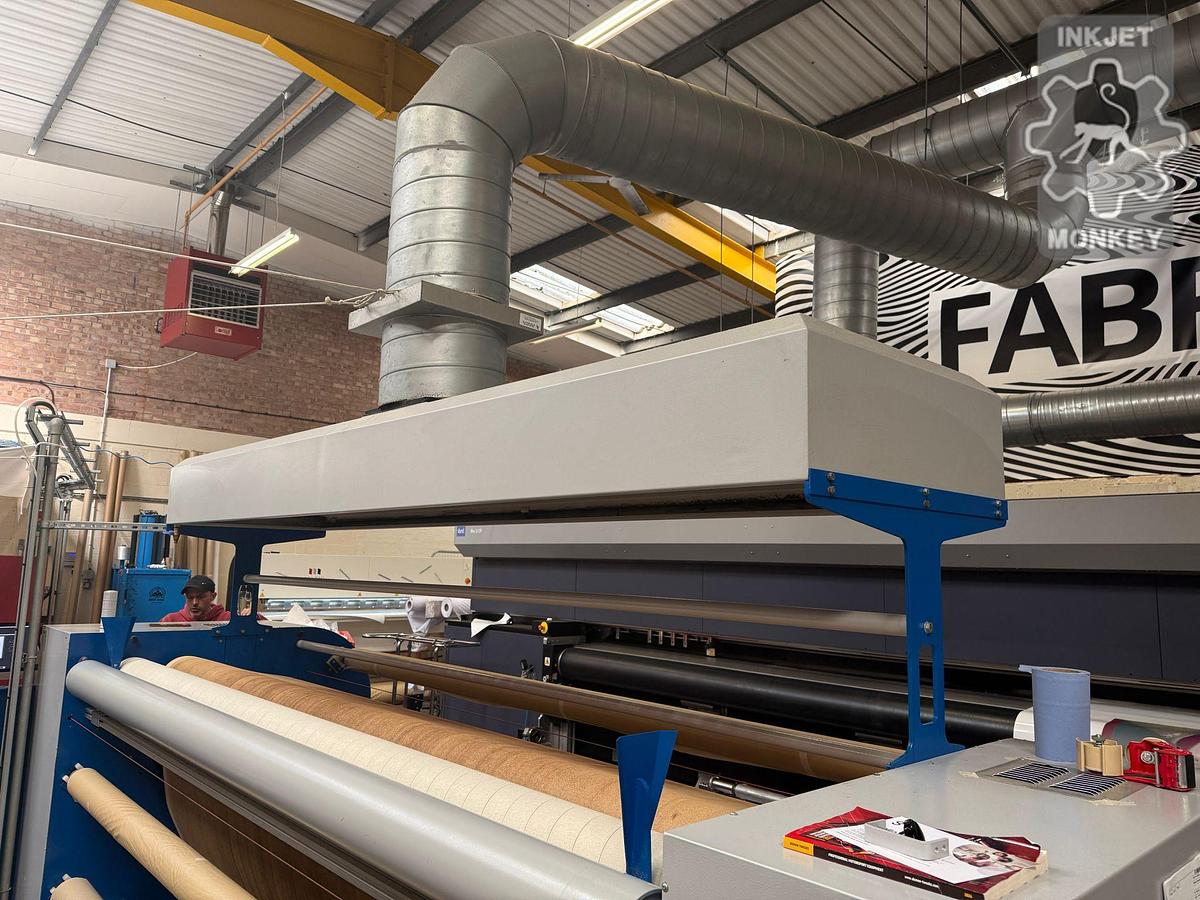

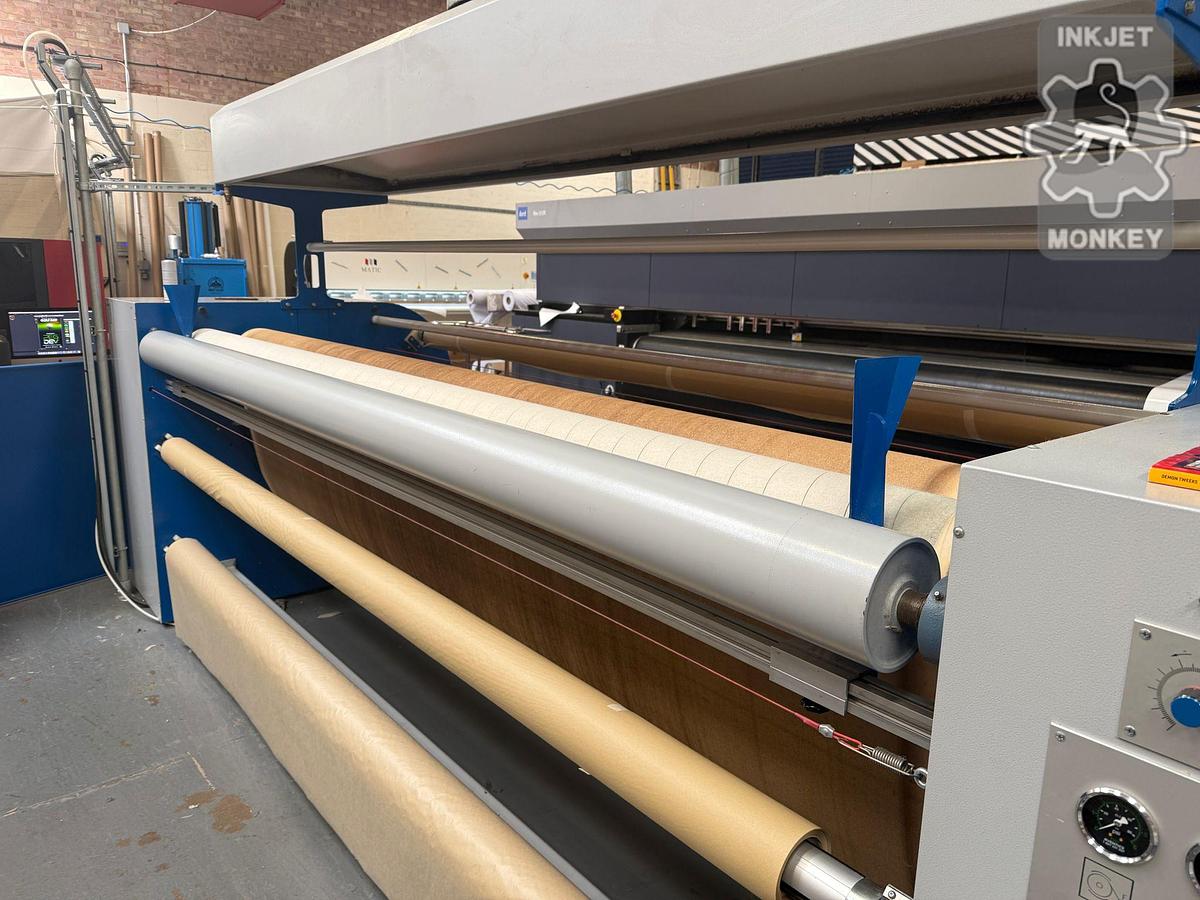

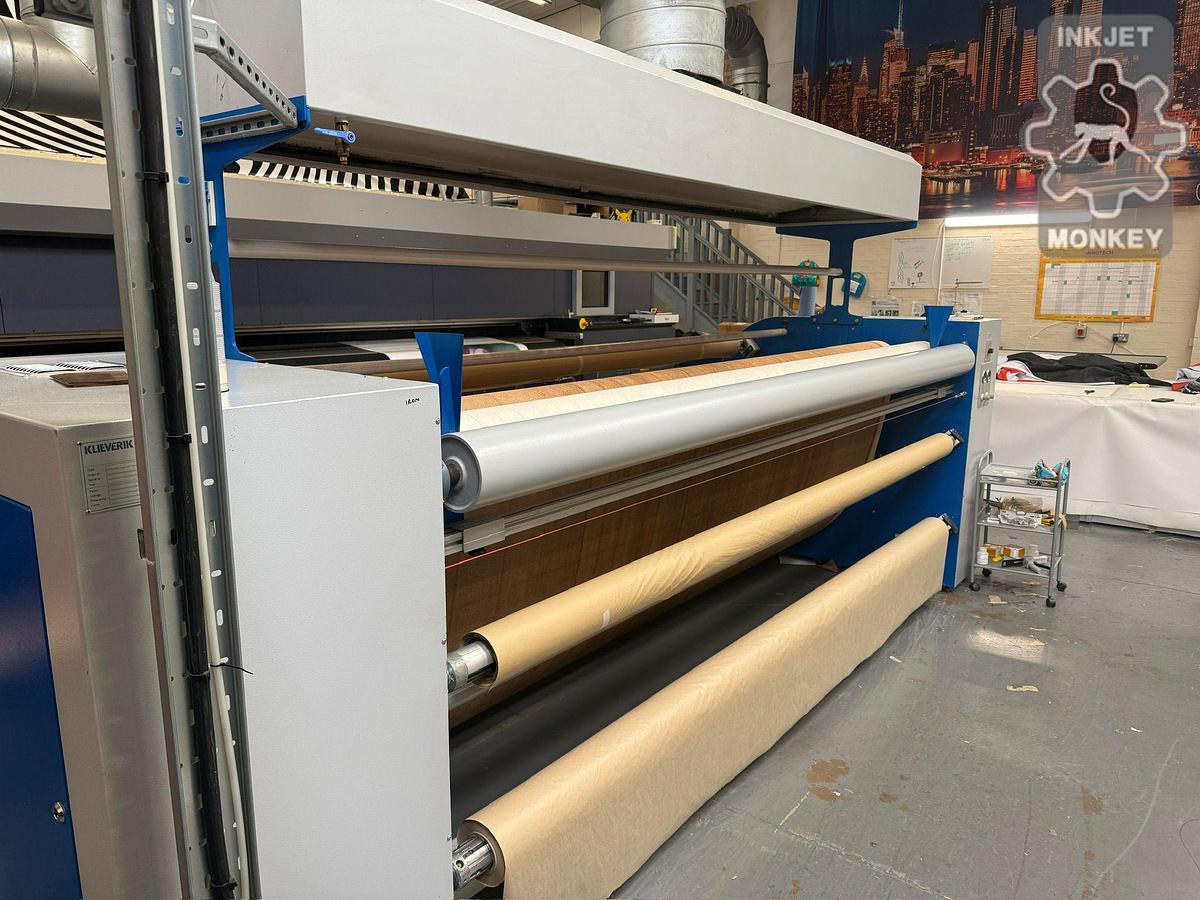

GTC101-3500 TRANSFER PRINTING CALENDER

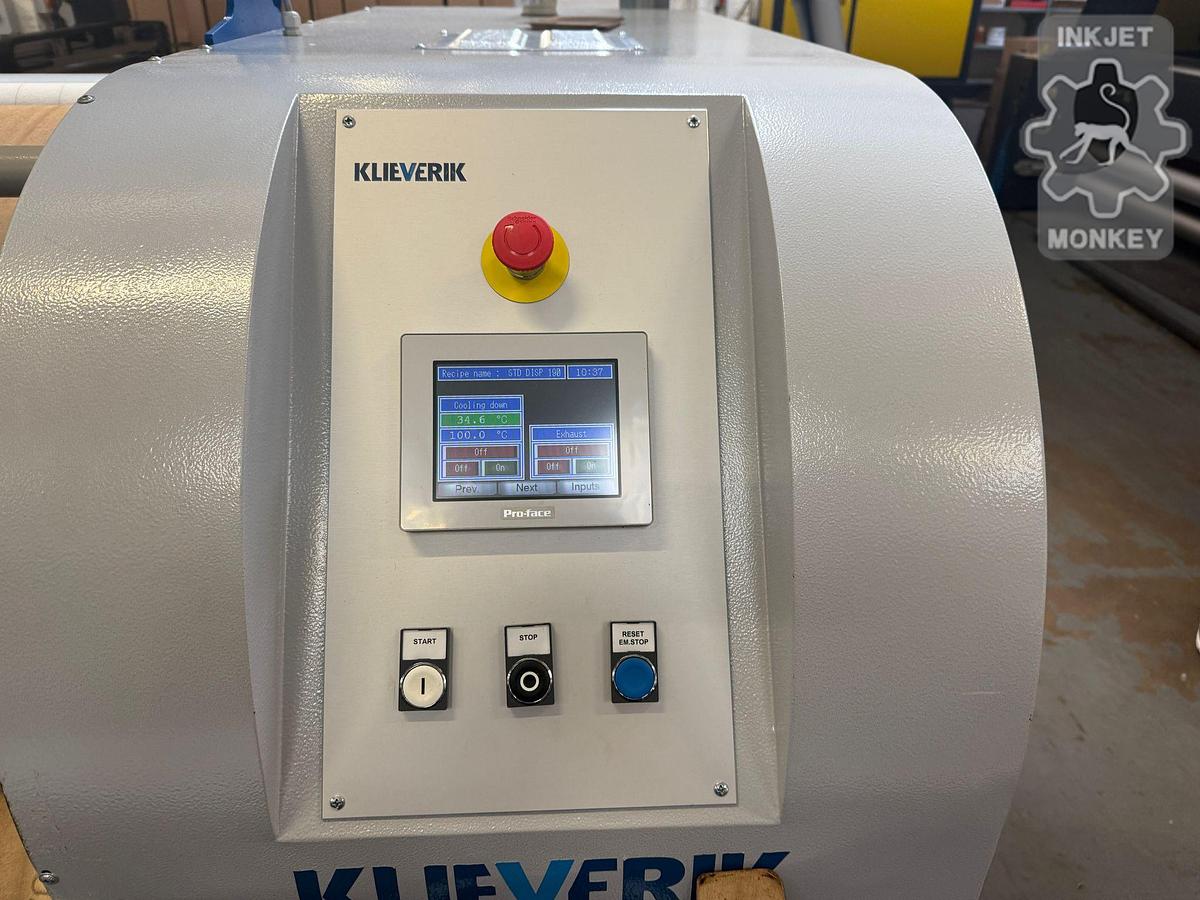

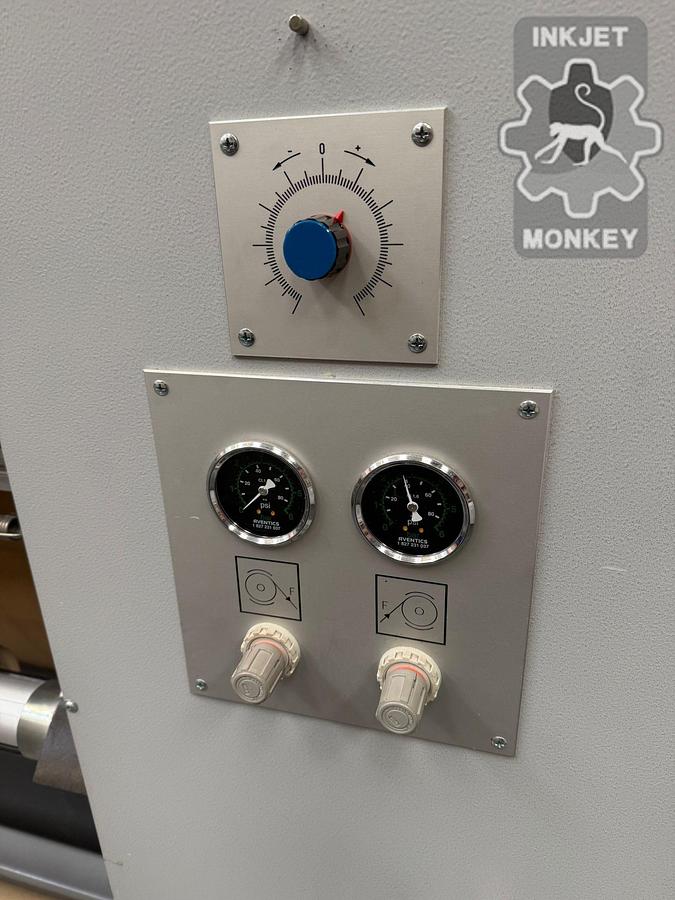

Transfer printing calender for roll-to-roll transfer printing or fixating of direct printed textile. Working width 3200 mm. The drum is electrically heated with oil as the carrier medium for the highest quality print and reproducible products. The calender is designed for an ergonomic operation. CHARACTERISTICS: • Roller width 3500 mm, working width 3200 mm • Drum diameter 365 mm • Mechanical speed 0,3 - 4 m/min • Textile unwind with low tension from core with cones and roller bearing support • Adjustable cloth tensioning bar • Driven low tension textile winder, for winding tension sensitive or stretch textiles. Consisting of: - One additional roller for the existing contact winder - Frequency controlled electrical drive - Differential speed setting +/- for winder; free loop winding possible • Protection paper unwind and winding position incl. tensioning device and shafts • Transfer paper unwind and winding position incl. tensioning device and shafts • Long and high quality Nomex belt • Stable belt guiding system to prevent movement of the material • Short heating up time • Pneumatic brakes • Touch screen operation, 5.7 inch colour touch screen panel for enhanced machine operation and remote monitoring.
