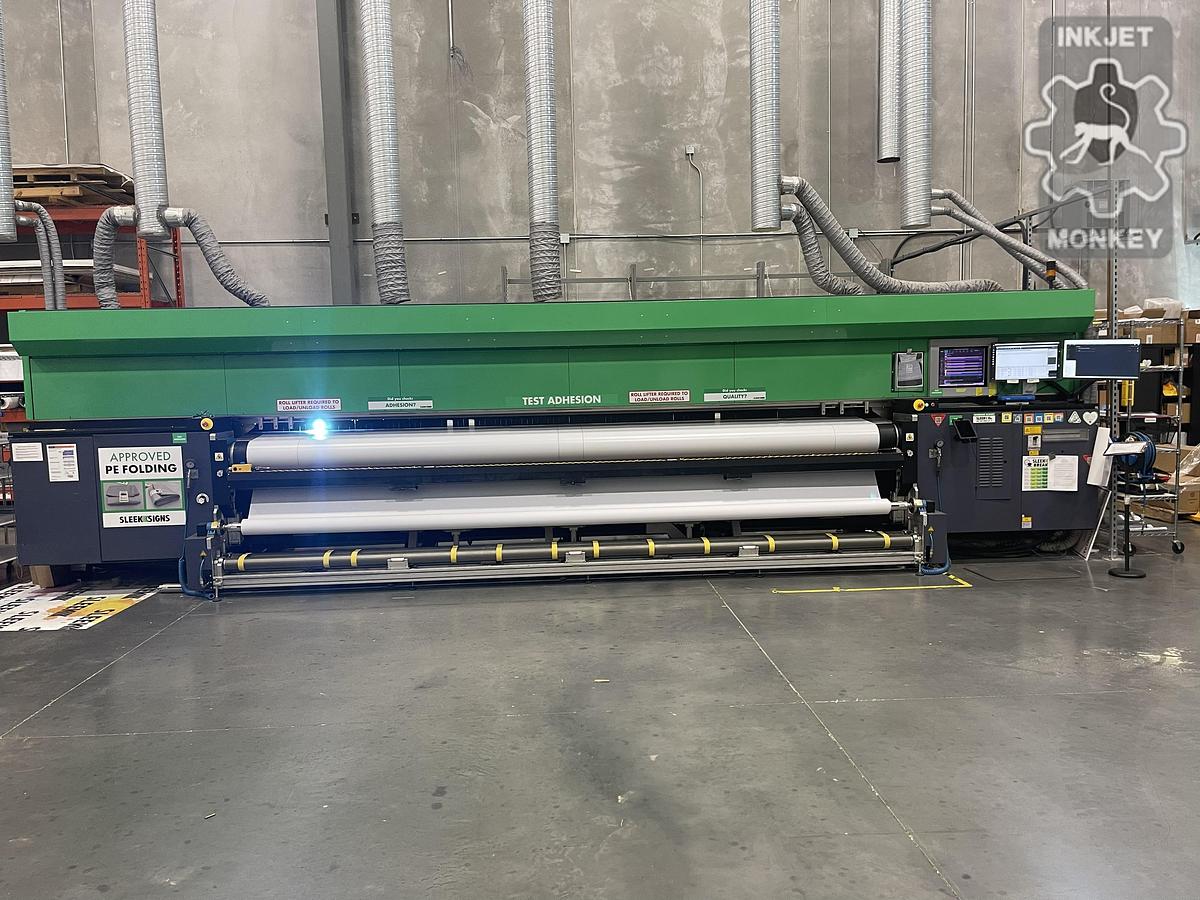

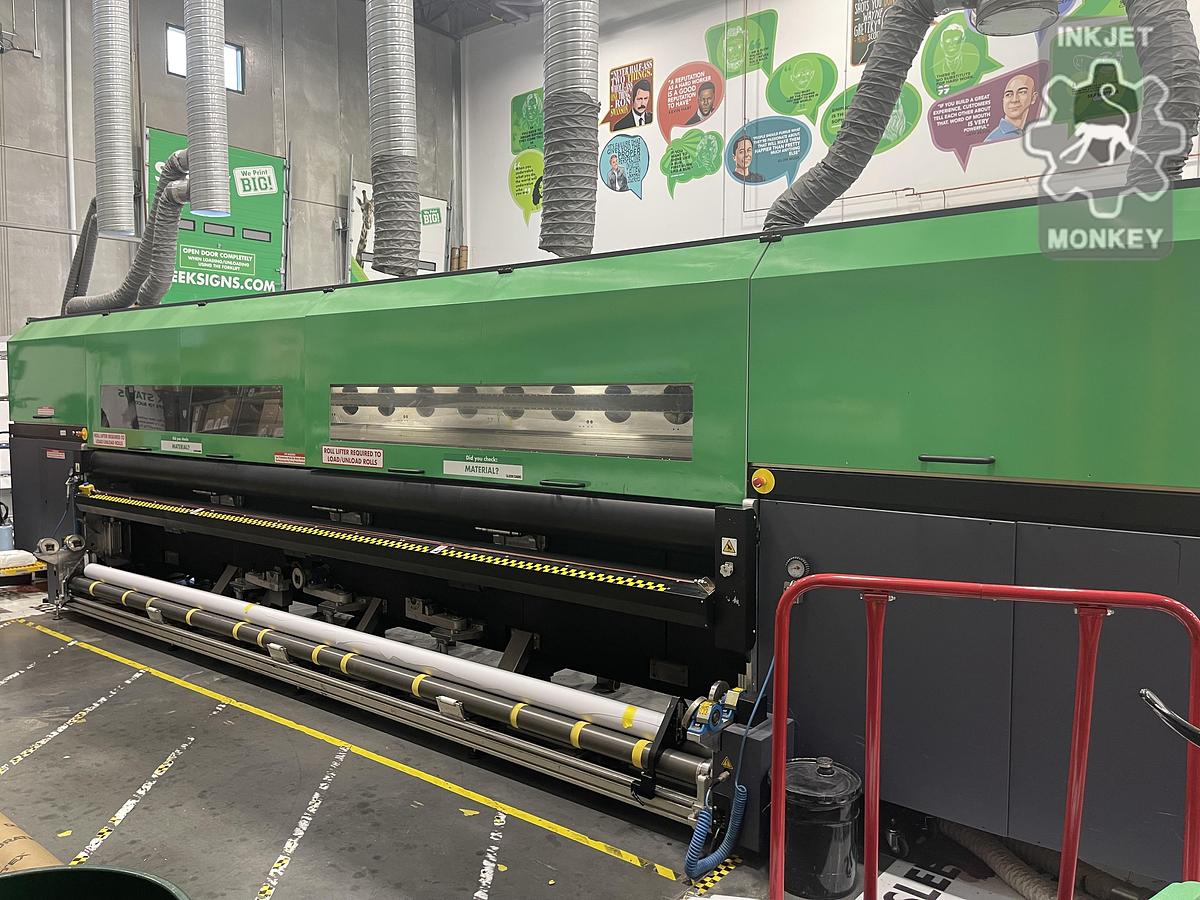

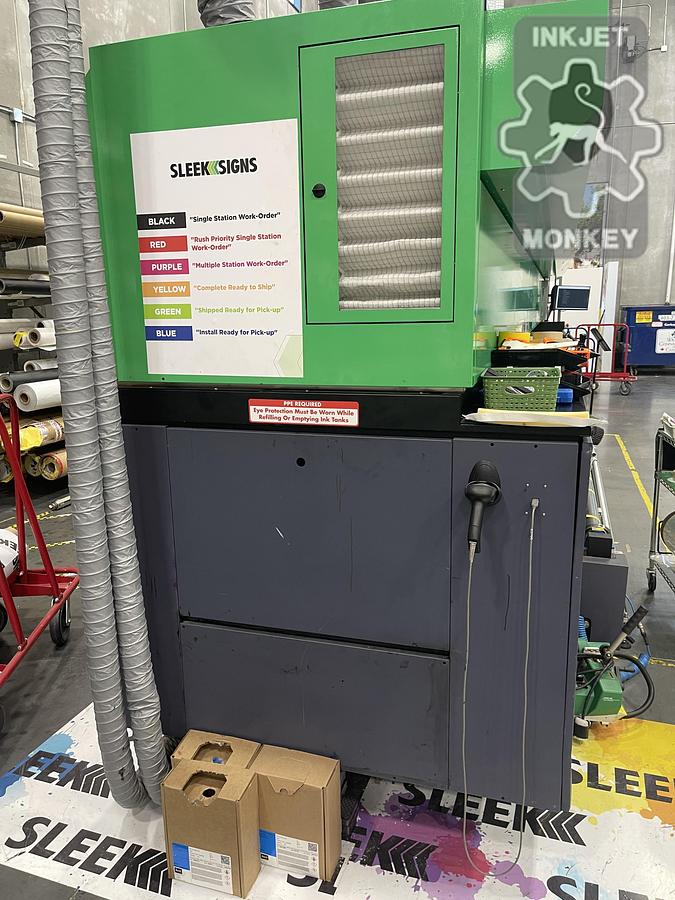

2017 Durst Rho 512r

●Print Width: Up to 500 cm (196 inches)

●Print Resolution: Up to 900–1200 dpi

●Max Speed: Up to 364 m2/h (3,918 sq ft/h)

●Production Speed: 152 m2/h (1,636 sq ft/h)

●UV Curing technology: Arc Bulb Lamps

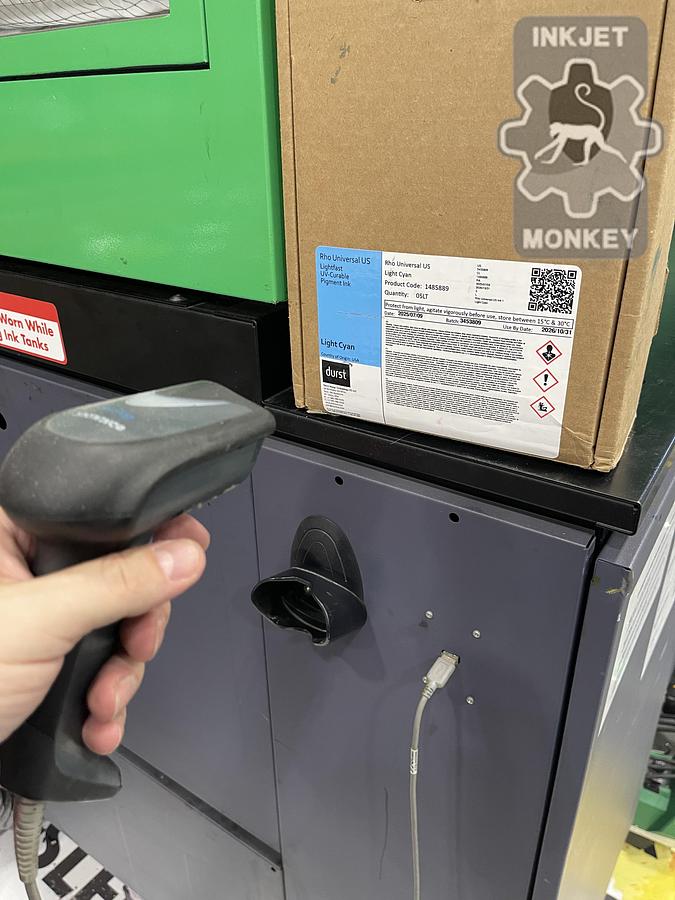

●Inks: VOC-free UV-curable pigmented inks with a 6-color configuration (CMYK, lc, lm)

●Maximum roll weight: Single rolls up to 270 kg (595 lbs)

●Maximum Roll media diameter: Rho 512R: 350 mm (13,7 in)

●Maximum material thickness: 2 mm (0.08 in) – material-dependent

●Dimensions: 850 cm Width x 220 cm Depth x 208 cm Height (approx. 27.8 x 7.2 x 6.8 ft)

●Weight: Approximately 7,000 kg (15,432 lbs)

Options Included:

●Textile Printing Kit

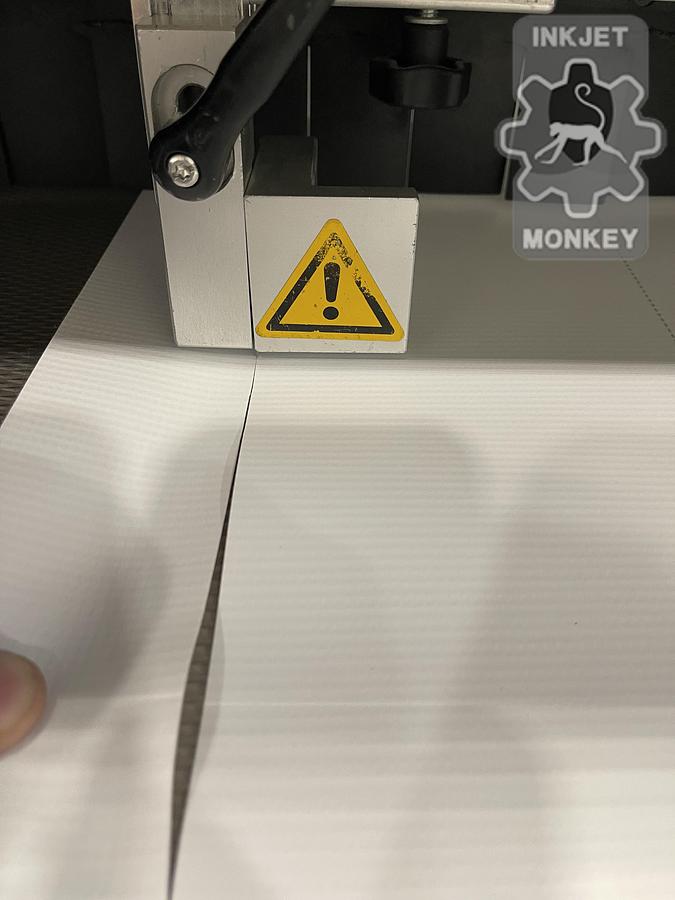

●Slitter Bar

●Multi-roll option, allowing simultaneous printing of up to 3 individual rolls (each max 160 cm wide)

●5m (196 inches) carbon fibre spindles with air bladders

Service performed:

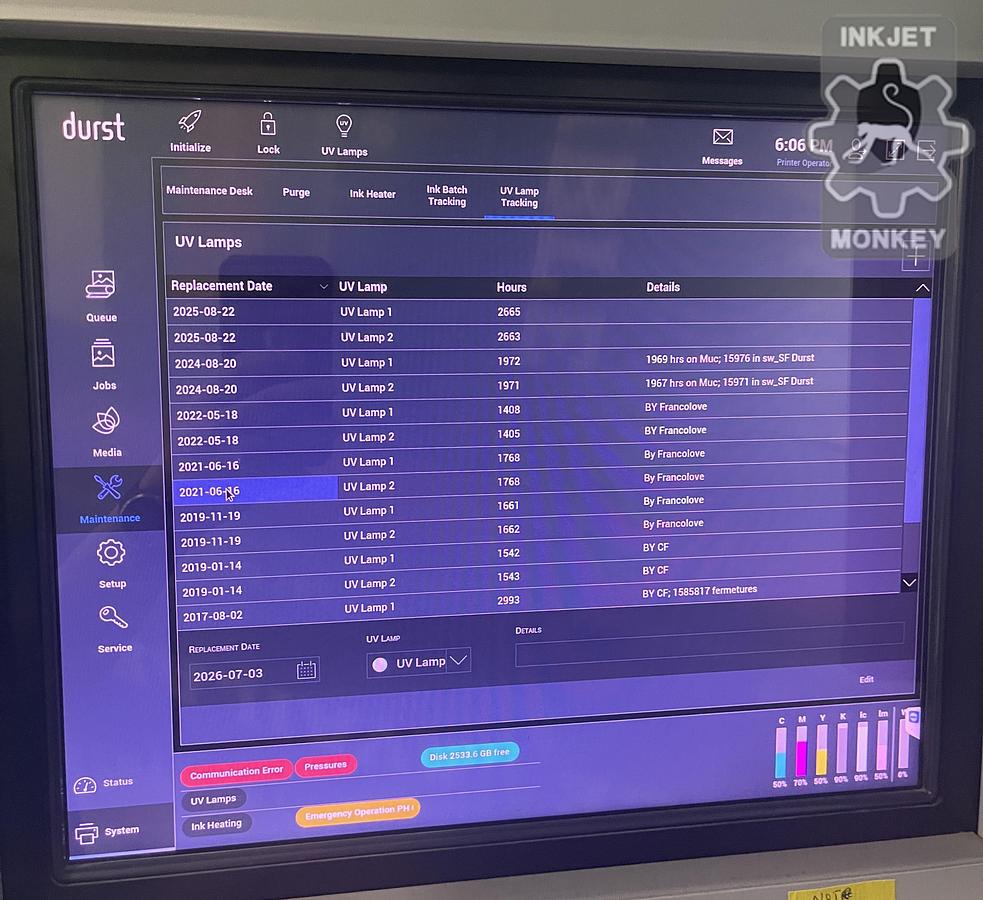

●July 2024 - Full preventive maintenance performed by Durst. All filters and bulbs replaced.

●July 2025 - Full preventive maintenance performed by Durst.

●Sept 2025 - Computer replaced by Durst

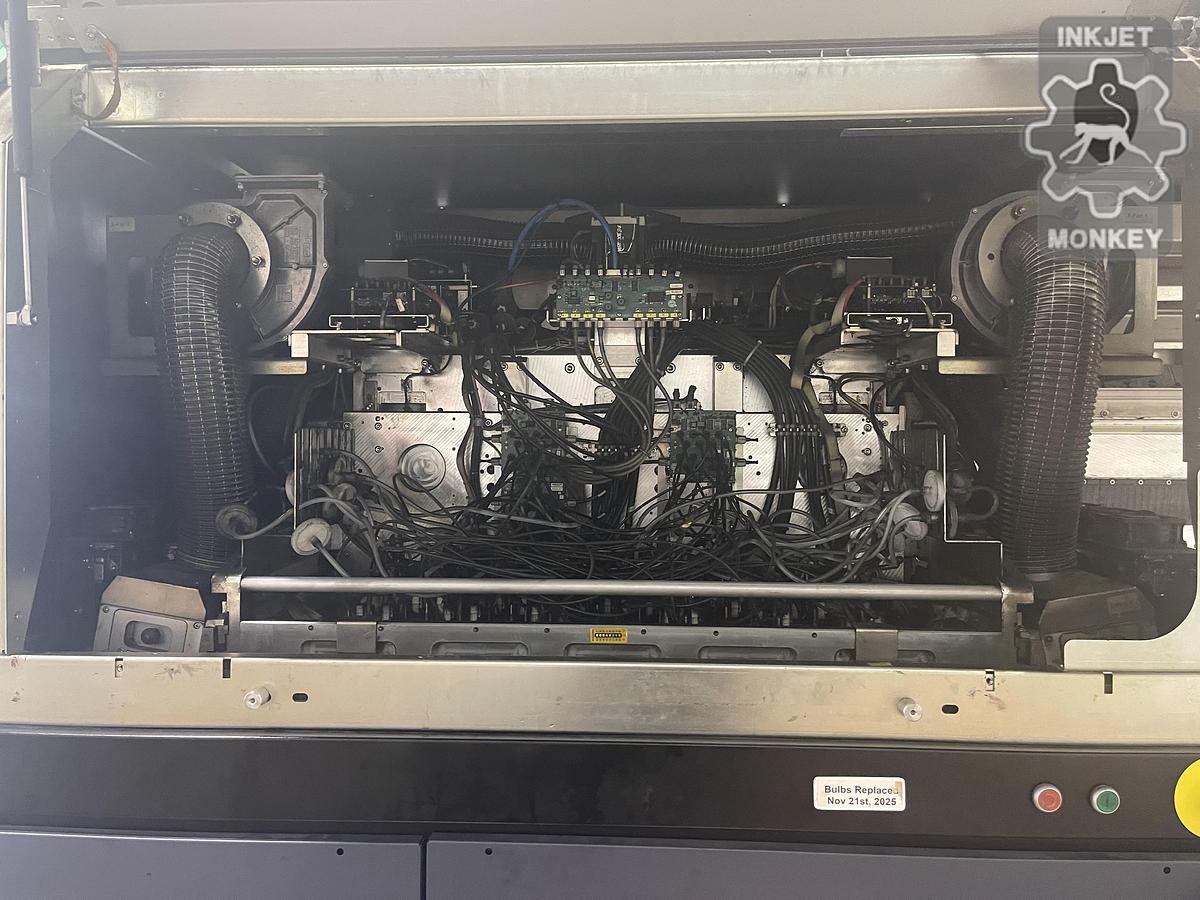

●Dec 2025 - Replaced sensors to resolve carriage initialisation issue. Lamp reflectors replaced.

Preventive maintenance - by Durst.
