2014 Flexa Sublimax 160

Price

£5,000 (GBP)

Available quantity

1

Location

Wolverhampton, United Kingdom

Specifications

ManufacturerFlexa
ModelSublimax 160
Year2014
ConditionUsed
Stock Number89005

At a glance

  • Used Flexa Italy - Sublimax Calender Heat Press; in good working condition

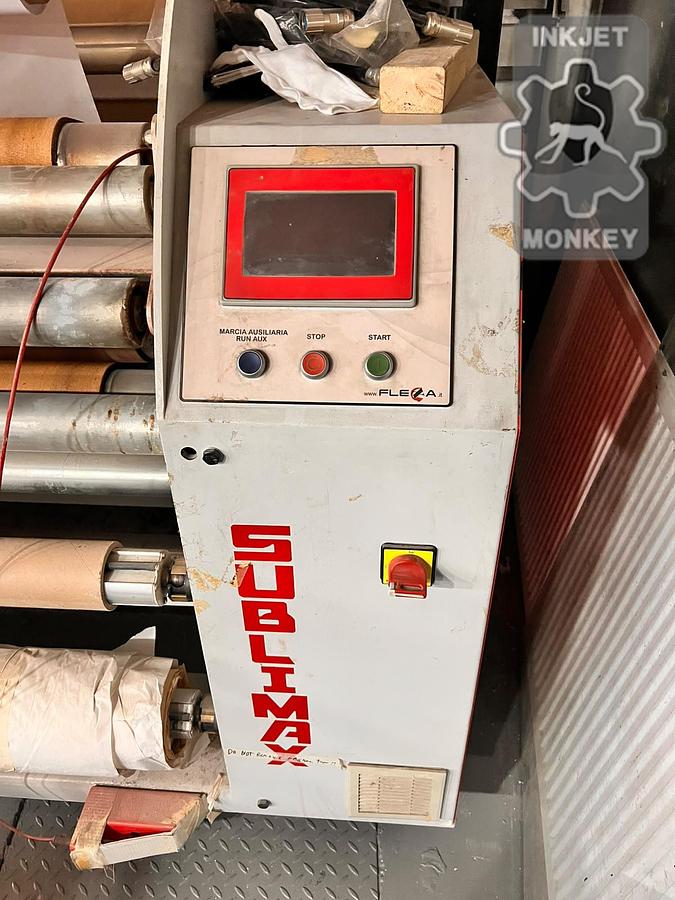

  • Electronic digital screen (not dials)
  • Comes with user manual


The original specifications, operating manual highlights, and core data for the red-and-white 1600mm Sublimax are detailed below:


Maximum Working Width: 1600 mm (63 inches)

Heating Drum Type: Proprietary Oil-Heated Cylinder

Drum Diameter: Ø 250 mm (9.84 inches)

Temperature Range: Adjustable up to 220°C (428°F)

Mechanical Speed: Adjustable from 0.1 up to 2.0 m/min (6.5 ft/min)

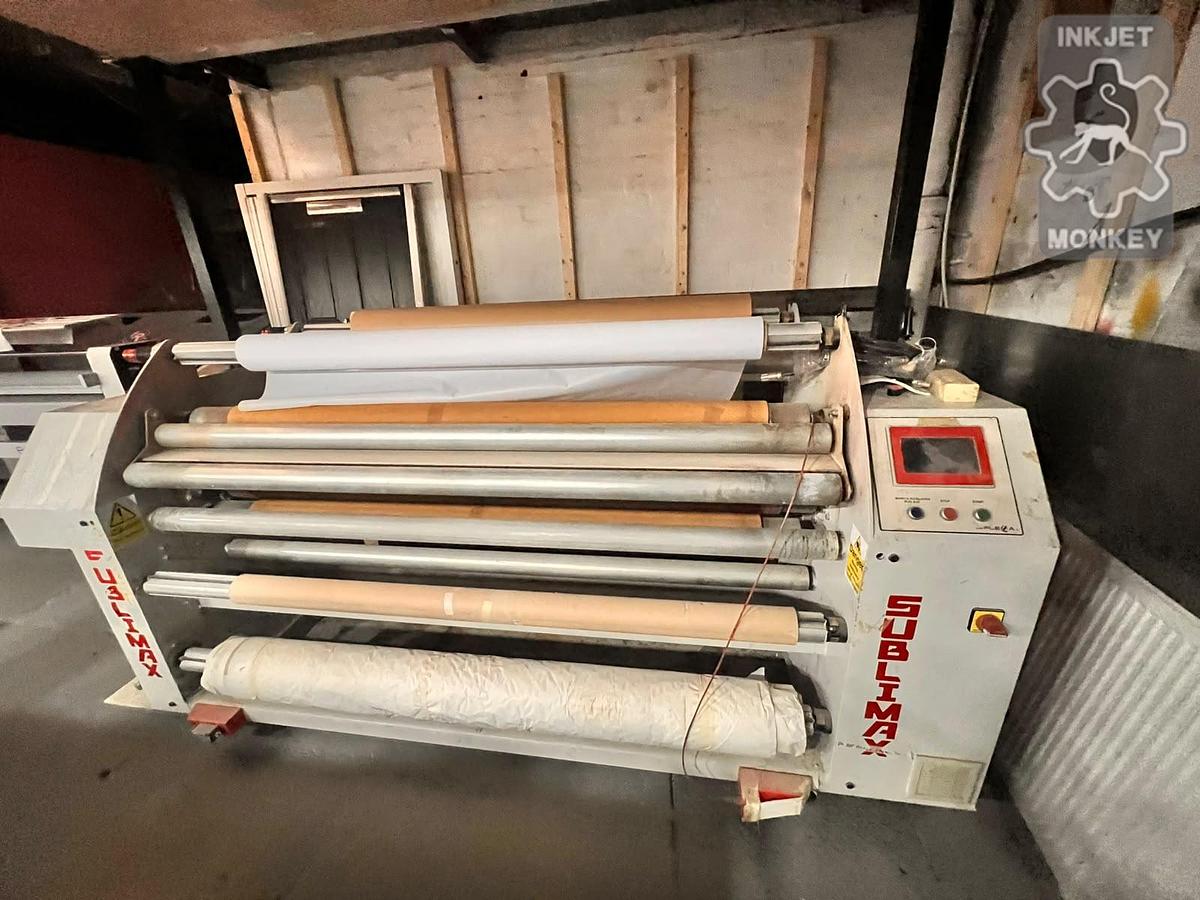

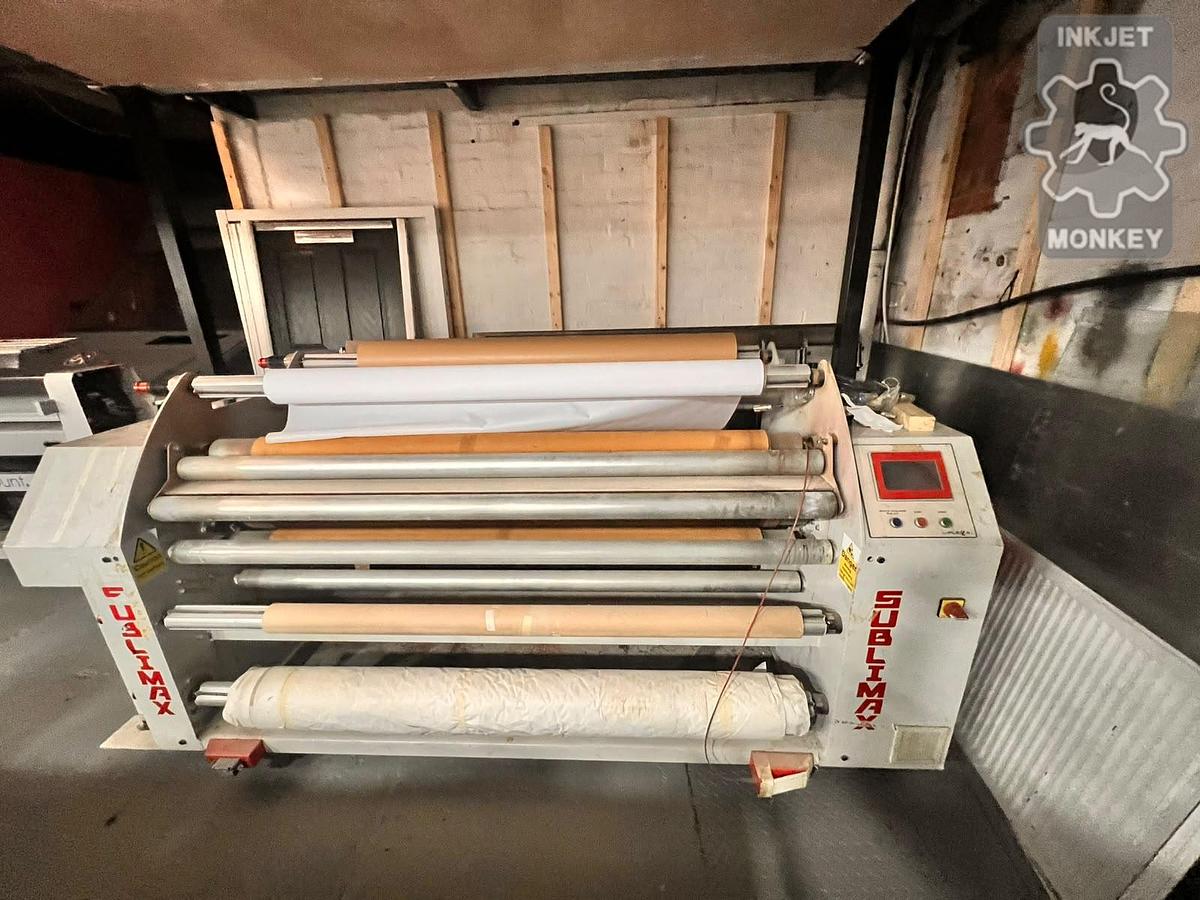

Material Shafts: 6 Shafts Total (3 unwinding with brakes / 3 motorised rewinding with clutches)

Felt Belt Control: Automatic belt tracking with dual pneumatic tensioners

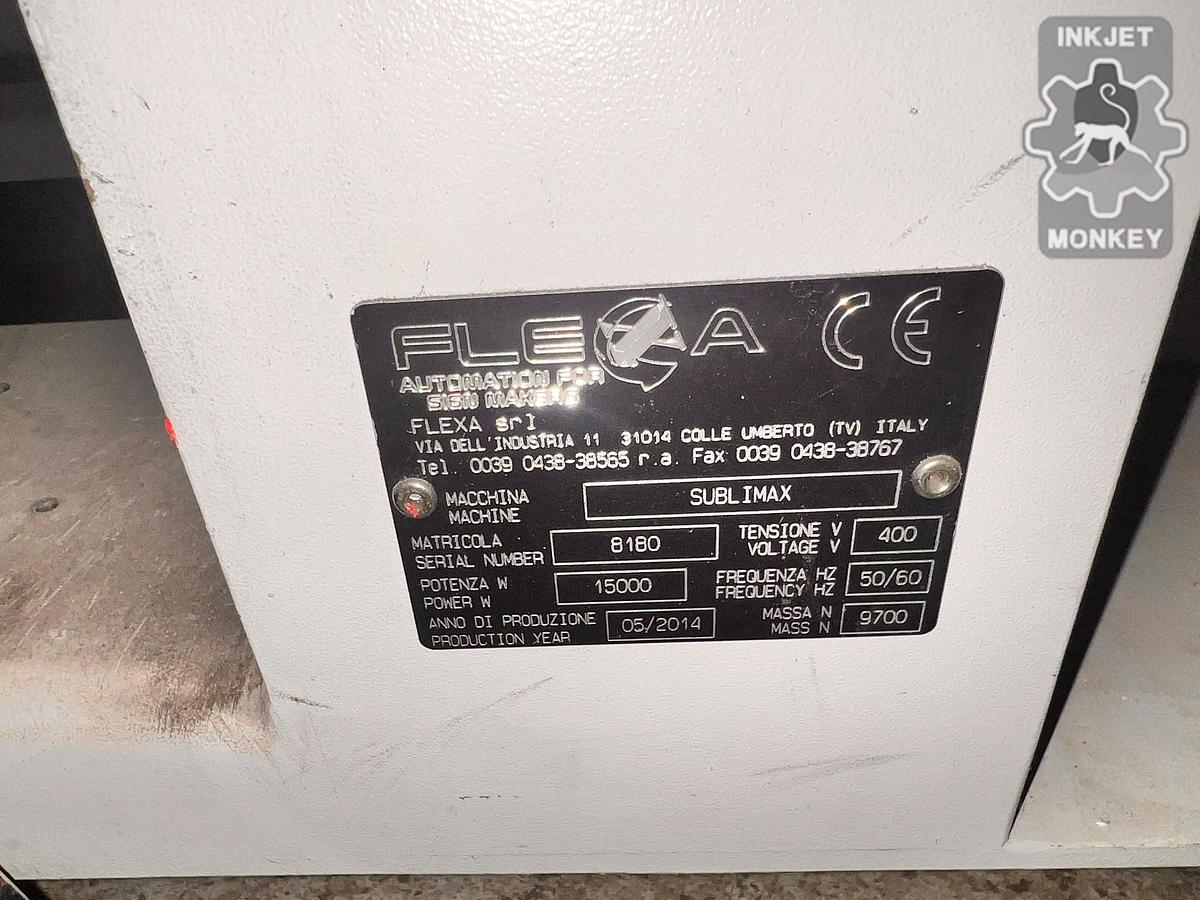

Power Requirements: 400V AC (3-Phase) – 50/60 Hz — ~14,500W to 15,000W

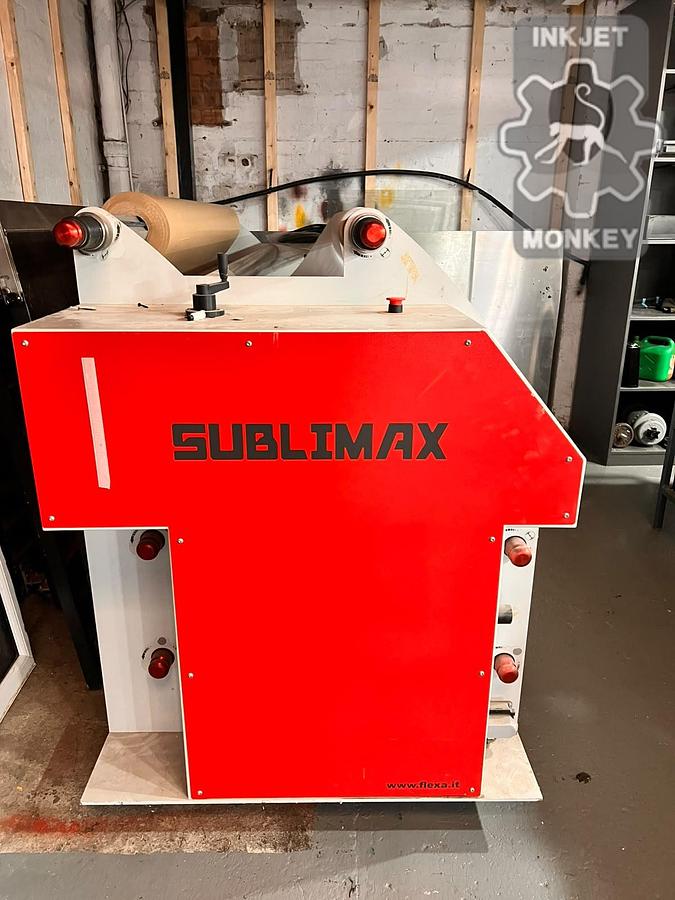

Chassis Aesthetic: Red structural steel side panels, safety barriers, and a white primary body.


Brochure Features & Processing Modes

The original marketing brochure highlighted three distinct production modes built into a single, compact floor footprint:

1) Roll-to-Roll Production

Designed for high-speed continuous transfer from roll-fed sublimation paper onto polyester fabrics, fashion textiles, or banner substrates.

2) Piece-by-Piece Processing (Sublimax 160 T Model)

Equipped with a front-loading flat extension table. This allowed operators to lay down pre-cut fabrics (like sportswear panels or customised blanks) onto roll-fed sublimation transfer paper.

3) Direct Ink Fixation / Reactivation

Used to post-bake or cure fabrics that had direct disperse or direct dye-sub inks printed straight onto the textile fibres by a digital printer.


Key Technical Advantages Highlighted by Flexa

  • No-Drain Heating Elements: The internal heating rods can be swapped out independently without needing to drain the internal synthetic heating oil chamber.
  • Uniform Heat Distribution: The pressurised oil chamber prevents edge-to-edge colour shifts or gradient drops across the 1600mm width.
  • Independent Belt Tensioning: Dual pneumatic controls manage the left and right tension independently to prevent synthetic textile shrinkage or wrinkling as it moves past the cylinder.
